Android 动画之TranslateAnimation应用详解

2020-4-11 13:55| 发布者: admin| 查看: 458| 评论: 0

本节讲解TranslateAnimation动画,TranslateAnimation比较常用,比如QQ,网易新闻菜单条的动画,就可以用TranslateAnimation实现,本文将详细介绍通过TranslateAnimation 来定义动画,需要的朋友可以参考下

android中提供了4中动画:
AlphaAnimation 透明度动画效果
ScaleAnimation 缩放动画效果
TranslateAnimation 位移动画效果
RotateAnimation 旋转动画效果

本节讲解TranslateAnimation动画,TranslateAnimation比较常用,比如QQ,网易新闻菜单条的动画,就可以用TranslateAnimation实现,
通过TranslateAnimation(float fromXDelta, float toXDelta, float fromYDelta, float toYDelta) 来定义动画

参数说明:

float fromXDelta 动画开始的点离当前View X坐标上的差值
float toXDelta 动画结束的点离当前View X坐标上的差值
float fromYDelta 动画开始的点离当前View Y坐标上的差值
float toYDelta 动画开始的点离当前View Y坐标上的差值
常用方法:

animation.setDuration(long durationMillis);//设置动画持续时间
animation.setRepeatCount(int i);//设置重复次数
animation.setRepeatMode(Animation.REVERSE);//设置反方向执行
Xml属性:

android:duration:运行动画的时间
android:repeatCount:定义动画重复的时间
代码:

public class MainActivity extends Activity {
ImageView image;
Button start;
Button cancel;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
image = (ImageView) findViewById(R.id.main_img);
start = (Button) findViewById(R.id.main_start);
cancel = (Button) findViewById(R.id.main_cancel);
/** 设置位移动画 向右位移150 */
final TranslateAnimation animation = new TranslateAnimation(0, 150,0, 0);
animation.setDuration(2000);//设置动画持续时间
animation.setRepeatCount(2);//设置重复次数
animation.setRepeatMode(Animation.REVERSE);//设置反方向执行
start.setOnClickListener(new OnClickListener() {
public void onClick(View arg0) {
image.setAnimation(animation);
/** 开始动画 */
animation.startNow();
}
});
cancel.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
/** 结束动画 */
animation.cancel();
}
});
}
}

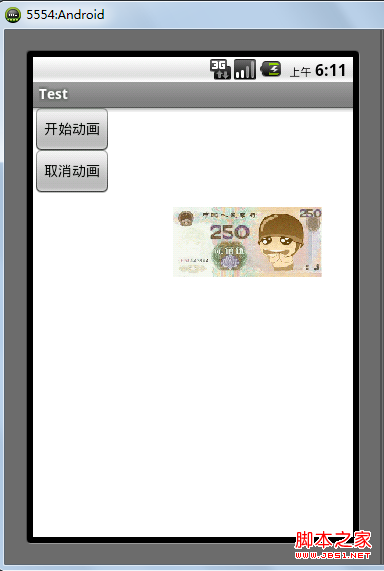

效果:
